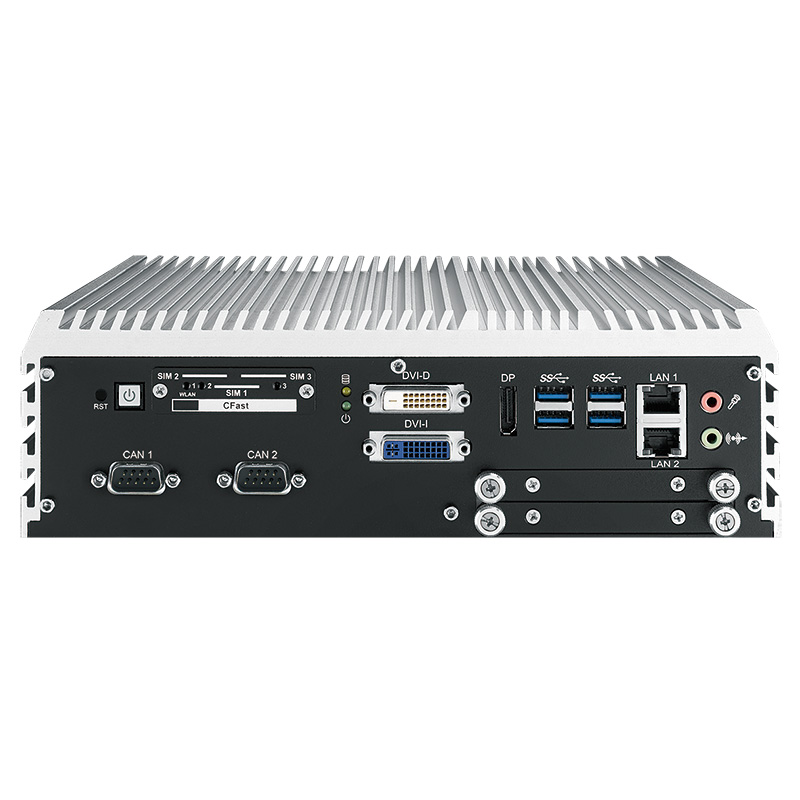

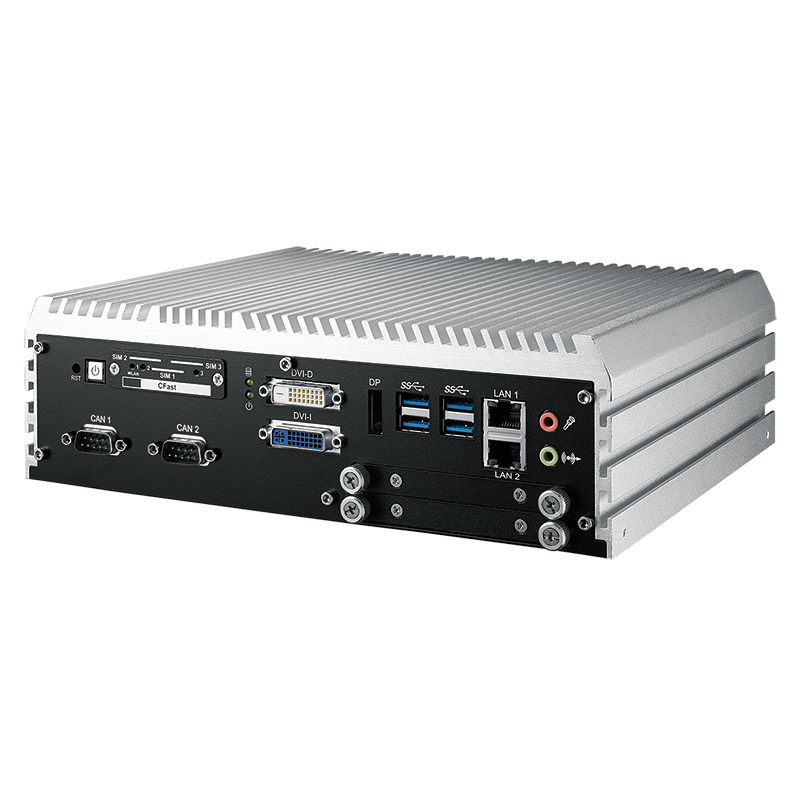

ECS-9244MXC (M12)
产品介绍
采用最新英特尔? Kaby Lake芯片技术，搭载第7代英特尔?至強?/酷睿? i7处理器，工作站等級计算性能、无风扇设计，支持-40°C到75°C超宽温工作温度、具有高速X-coded M12以太网接口和CAN总线接口，支持多种高端数字接口，配备丰富完整、支持6V到36V宽范围电流输入和80V电涌防护，内含智能电流防护功能、強固级产品可靠性设计、支持多种扩充接口和优化的操控性、产品功能高度整合，超恩ECS-9200MXC系列超宽温无风扇嵌入式系统满足您各式高端嵌入式方案需求。
产品特性
LGA 1151 Socket supports Quad Core Intel? Xeon?/Core? i7/i5/i3 Processor (Kaby Lake/Skylake) with C236 Chipset
2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC)
Fanless, -40°C to 75°C Operating Temperature
10 Independent GigE LAN with 8 IEEE 802.3at PoE+, 4 X-coded M12 connections, iAMT 11.0
2-port CAN Bus for network expansions
2 Front-access 2.5" SSD/HDD Tray support up to 4TB capacity & RAID 0, 1
2 Front-access SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
Storage : 2 SSD Tray, 1 CFast, 1 M2DOM, 2 SATA III
Expansion : 2-port CAN Bus, 2 Mini PCIe/mSATA, 1 M.2
DVI-I, DVI-D and DisplayPort display interfaces, up to 4K displays
32 Isolated DIO, 8 USB 3.0, 4 COM, 2 Mini PCIe
M2DOM supports up to 8GT/s data rate
6V to 36V DC-in with 80V Surge Protection
Configurable Ignition Power Control
技术参数
| System | |
| Processor | Quad Core Intel? Xeon?/Core? i7/i5/i3 Processor (Skylake-S/Kaby Lake-S) |
| Chipset | Intel? C236 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2133MHz SO-DIMM, up to 32GB (ECC/Non-ECC) |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8KV) |
| USB | - 8 USB 3.0 (External) - 1 USB 2.0 (Internal) |
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | Power, HDD, Wireless, PoE |
| SIM Card | 2 SIM Card Socket (External) |
| CAN Bus | 2-port CAN Bus 2.0 A/B |
| Expansion | |
| Mini PCIe | 2 Full-size for PCIe/USB/External SIM Card/mSATA |
| M.2 | 1 M.2 Socket (Key ID : M) |
| Graphics | |
| Graphics Processor | Intel? HD Graphics 630/530 |
| Interface | - DVI-I : Up to 1920 x1200 @ 60 Hz - DVI-D : Up to 1920 x1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz |
| Storage | |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 3 SATA III (Mini PCIe Type, 6Gbps) |
| M2DOM | 1 PCIe 3.0 (8GT/s) |
| Storage Device | - 1 CFast Socket, Push-in/ Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel? I219LM GigE LAN supports iAMT 11.0 |
| LAN 2 | Intel? I210 GigE LAN |
| PoE (X-coded M12) | |
| LAN 3 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel? I210, X-coded M12 Connector |
| LAN 4 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel? I210, X-coded M12 Connector |
| LAN 5 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel? I210, X-coded M12 Connector |
| LAN 6 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel? I210, X-coded M12 Connector |
| PoE | |
| LAN 7 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel? I210 |
| LAN 8 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel? I210 |
| LAN 9 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel? I210 |
| LAN 10 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel? I210 |
| Power | |
| Power Input | 6V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
| Mechanical | |
| Dimension (W x L x H) | 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”) |
| Weight | 4.3 kg (9.48 lb) |
| Mounting | - Wallmount by mounting bracket - DIN Rail Mount (Optional) - 2U Rackmount (Optional) |
| Environment | |
| Operating Temperature | 35W TDP CPU : - Core? i7, i5, i3 : -40°C to 75°C (-40°F to 167°F) 65W TDP CPU : - Core? i7, i5, i3 : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : - Xeon? E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 75°C |
| Shock | - IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration | - IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
