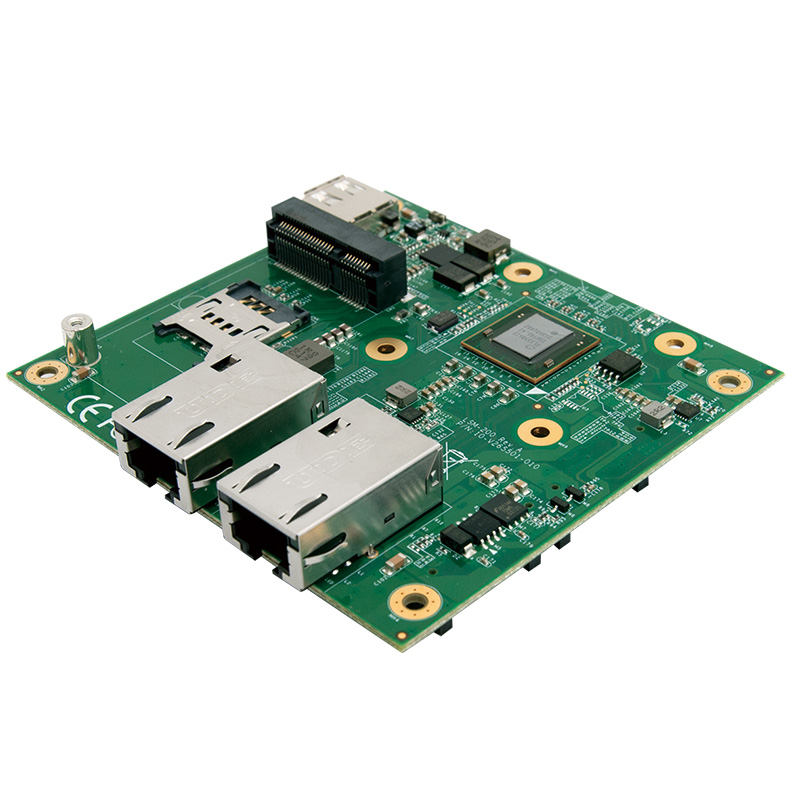

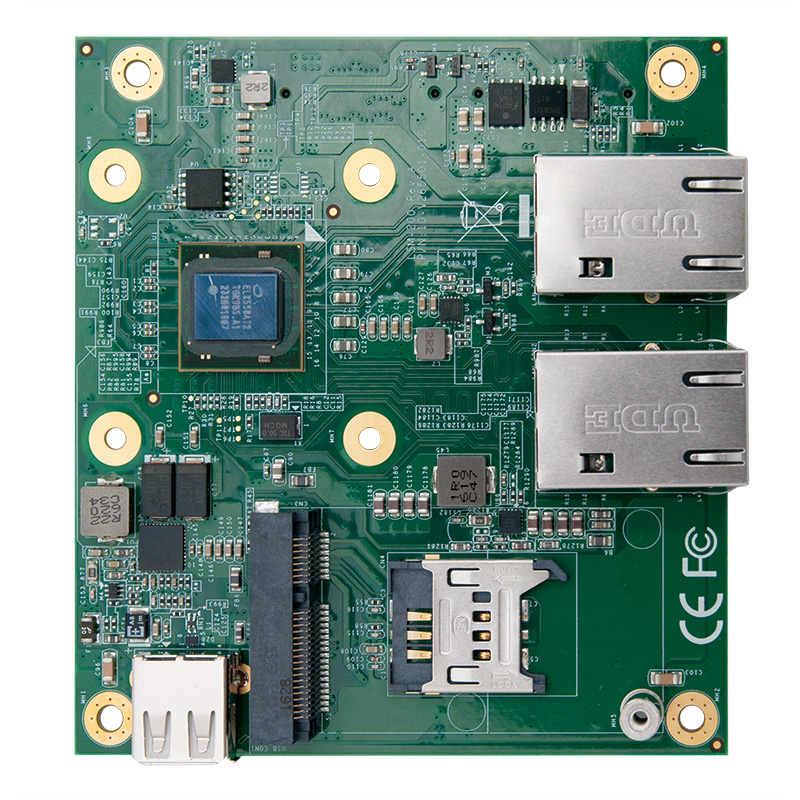

LSM-550-AT2
产品介绍
SUMIT Expansion Card with 2 10GigE LAN, 1 Mini PCIe Slot, 1 SIM Socket, 1 USB 2.0, -25°C to 55°C
产品特性
Intel? X550-AT2 10GBASE-T controller supports up to 10Gbps data rate
IEEE 802.3an Fast Ethernet standard compliant
IEEE 1588 Precision Time Protocol (PTP)
Up to 9728 bytes Jumbo Frame, Link Aggregation
Supports Wake-on-LAN (WoL) & PXE
Intel? Ethernet Power Management
Intel? Data Direct I/O Technology
Intel? Virtualization Technology for Connectivity (VT-c)
SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
-25°C to 55°C Operating Temperature
技术参数
| Ethernet | |
| Controller | Intel? Ethernet Controller X550-AT2 |
| Controller Qty | 1 |
| Data Rate | 10Gbps/ 5Gbps/ 2.5Gbps/ 1Gbps/100Mbps |
| Jumbe Frame | Up to 9728 byte |
| Link Aggregation | Present |
| I/O Interface | |
| Bus Type | LSM-550-AT2 : SUMIT B LSM-550-AT2-E : SUMIT A, B |
| LAN | 2 RJ45 Connector |
| Mini PCIe | 1 Full Size Mini PCIe Socket |
| SIM Card | 1 SIM Card Socket (Internal, optional supports External I/O Type) |
| USB | 1 USB 2.0 Connector |
| Mechanical | |
| Dimensions (W x L) | 90mm x 96mm (3.5" x 3.8") |
| Weight | 150 g |
| Environment | |
| Operating Temperature | -25°C to 55°C (-13°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 55°C |
| EMC | CE, FCC |
