UMX-100
产品介绍

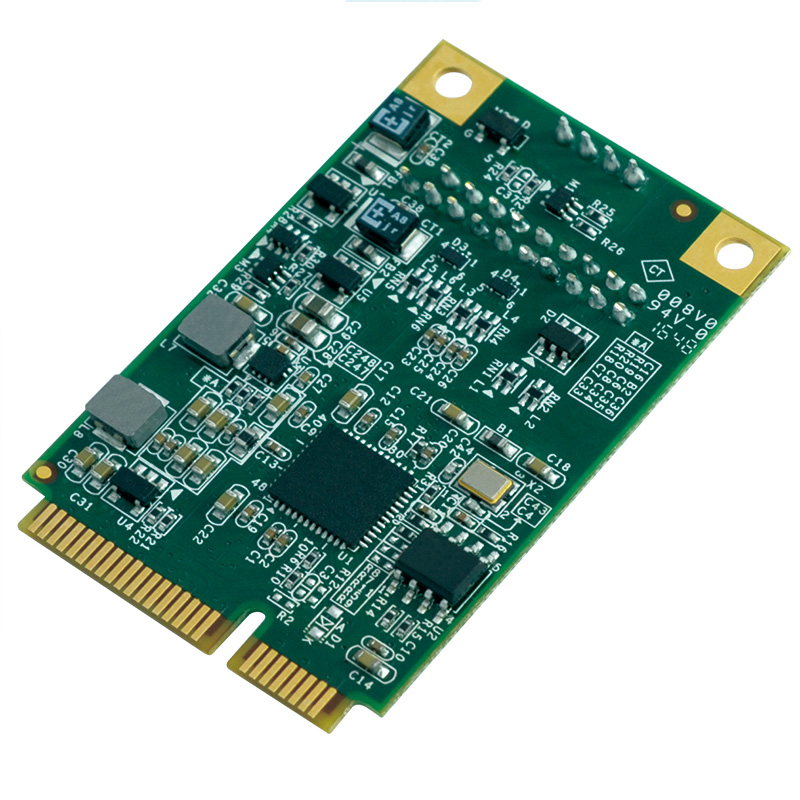

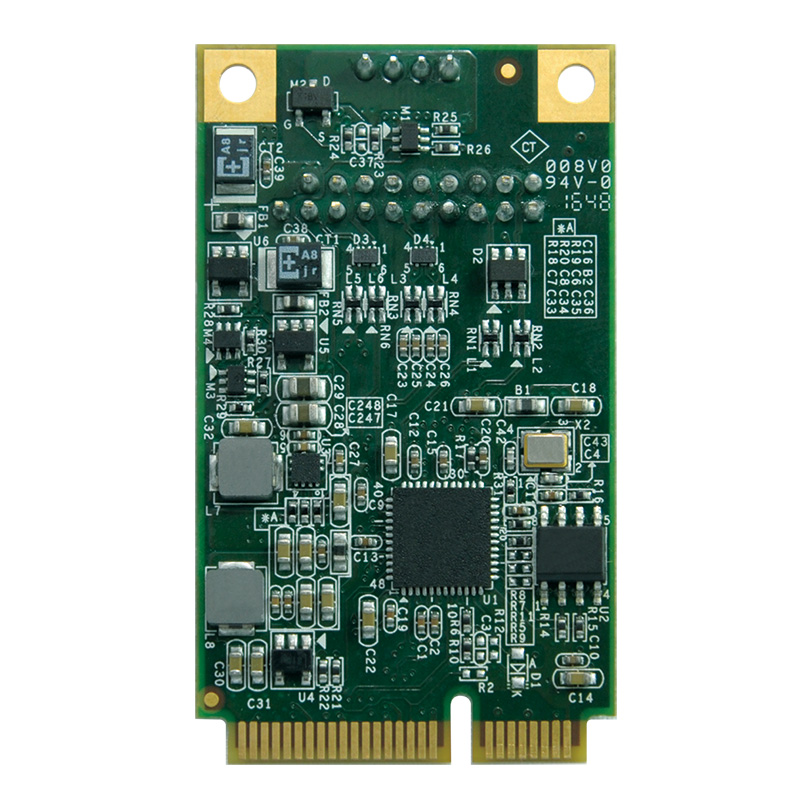

Renesas μPD720202 Mini PCIe 2-port USB Card, PCI Express x1, USB 3.0
产品特性
-40°C to 85°C Operating Temperature
PCI Express? 2.0 compliant, compact size
2 high-speed USB 3.0 ports, up to 5Gbps data rate
USB 3.0 Rev. 1.0 compliant
Intel? xHCI Rev. 1.0 compliant
PCI Express x1 Interface
Supports Window 10, Windows 8.1, Windows 7 and Linux
技术参数
| USB | |
| Interface | Mini PCIe |
| Controller | Renesas μPD720202 |
| Standard | USB 3.0 Rev. 1.0 compliant |
| Number of Port | 2 |
| Data Rate | UP to 5Gbps |
| Link Aggregation (LAG) | Present |
| Connector | 19-pin Header |
| Software Support | |
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
| Mechanical | |
| Dimensions (W x L) | - Mini Card : 30mm x 51mm - Cable Length : 320mm |
| Weight | 152 g |
| Environment | |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 70°C |
| EMC | CE, FCC |
| Packing List | |
1 UMX-100 Mini PCIe USB Card | |
1 Cable Set | |
1 Driver CD | |
1 Screw Kit | |
| 1 Bracket | |
